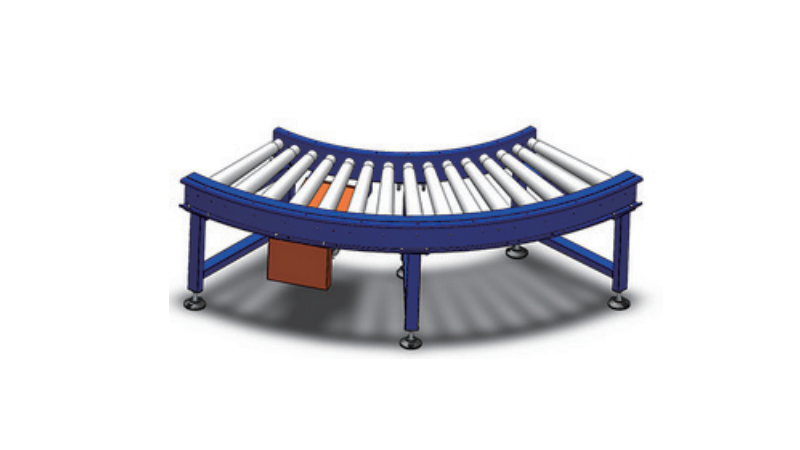

Main structure and features：
Roller: φ50*1.5mm double sprocket roller, bearings at both ends are maintenance-free deep groove ball bearings, barrel material is carbon steel galvanized, and is covered with a hard plastic cone sleeve.

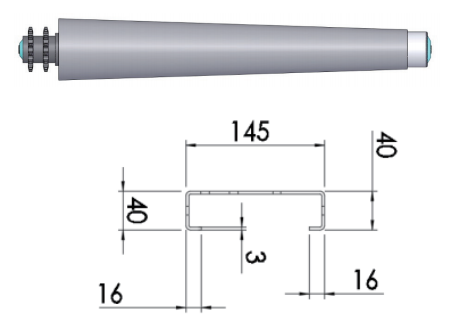

Frame: Laser cutting/welding is used for blanking of 3mm steel plate, size: 145* 40mm, and the structure is as shown in the figure:

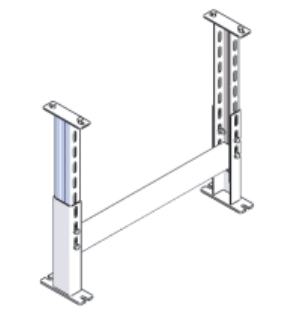

Leg: Made of customized profile welding, it has the advantages of firmness and good stability. Connect the connecting plate to the frame bolt, adjust the foot base to connect with the ground, and adjust the height of the conveying surface by ± 50mm. The structure is shown in the figure:
Drive device: motor-driven.
Surface coating: Components such as frames, legs, guides, accessories, etc. are first derusted with wire brushes, sandpaper, etc., and then acid washed to remove grease. After phosphating, the surface is electrostatically sprayed with epoxy resin powder and baked. The spraying color shall be specified by Party A on the color card.
External component configuration: The motor adopts SEW/SPG, and the chain adopts Donghua.
Main performance and parameters
Formal description：
● Double chain roller drive (08B-14Z)/φ50×1.5mm
● Roller sprocket plastic steel/Q235/304
● Roller barrel Q235/201/304
● Conical roll form Plastic cone sleeve/steel type
● Frame steel 125×40×3mm
● R series built-in motor
| Standard Style | |
| Standard | Description |
| Steering angle θ （ ° ） | 90/60/45/30 |
| Turning radius R （mm） | 850 |
| Height H (mm) | H(min)≥300 |
| Inner width B (mm) | 350 ≤ B ≤ 800 |
| Motor power P (kw) | 0.06～0.2 |
| Conveying speed V (m/min) | V=20 V=25 V=32 V=40 |
| Conveying capacity（ Kg/m ） | Max ≤100 |
| Roller angle θ （ ° ) | Max 5 |
| Roller spacing P (mm) | P<1/3L (L is the length of the conveyed material, chain pitch 12.7mm) |
